External RF Antenna - Assembly Guide

Contents and Tools required

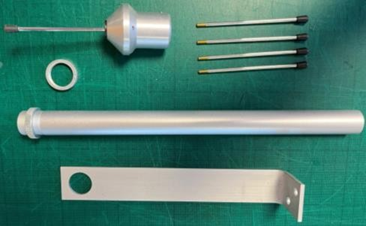

  1. Included
    1. Wall bracket
    2. Upright pole (with 2 circular mounting nuts)
    3. Antenna head
    4. 4x antenna spokes
    5. Antenna Cable
  2. Not Included
    1. H2 Hex bit

Bracket assembly

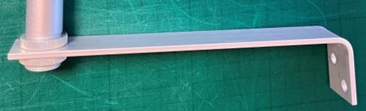

Take one of the circular nuts off the upright pole and insert the pole through the hole of the bracket (making sure the area of the bracket with the mounting holes are face down). Screw the nut back on to the base of the pole to secure the pole onto the bracket.

Antenna head assembly

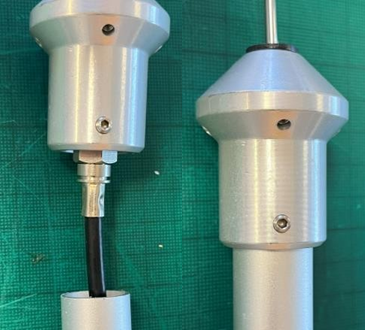

Screw the connector into the antenna head and then feed the cable through the top side of the upright pole. Using a H2 bit, undo the grub screw enough that the head will slide over the pole. Once the pole has been inserted, tighten the grub screw up.

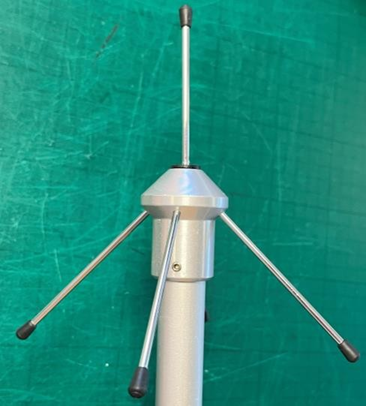

Once done, screw in the antenna spokes to the head of the antenna.

Connecting the antenna to the control panel

Info
Please refer to the "RF Antenna - Installation" guide for installation and configuration.
