M2M Communicator - Quick Start Guide (Webeye)

M2M Communicator - Quick Start Guide (Webeye)

M2M Communicator - Quick Start Guide (Webeye)

Adding to Webeye

The M2M communicator comes fully configured and ready to go out the box. To add the device onto webeyeCMS follow the below steps:

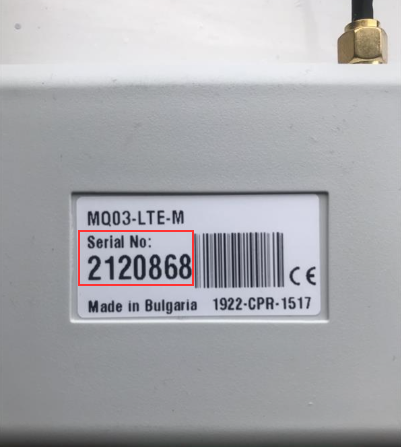

  1. First step is finding the device serial, this is on the sticker on the back of the M2M Communicator device (See image below).
  1. Once the serial has been found, navigate to the webeyeCMS platform and find the site where you'd like the device added

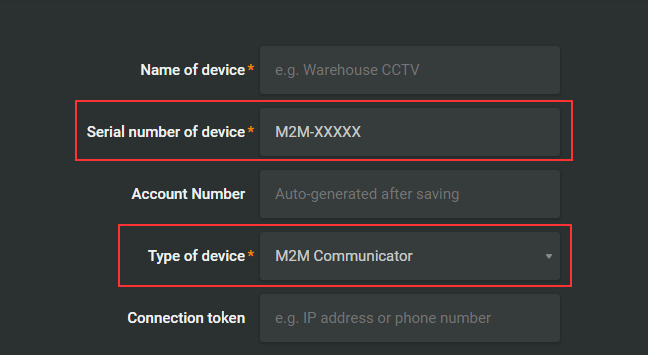

  2. Once here, select Create Device. The serial you will be using is formatted as M2M-<SERIAL NUMBER> (Example as per device pictured above: M2M-2120868).
The * icon fields are requirements, please ensure these are completed as you won't be able to Save at the bottom otherwise.



Once the device has been created, signals will now come from the M2M Communicator into webeyeCMS.

If you have any further questions or queries, please feel free to contact the Technical Support team on 0115 714 9990.

Checking Device Status (Installer)

To check the current status of the device during installation, you can download the RControl Admin application via the below links:

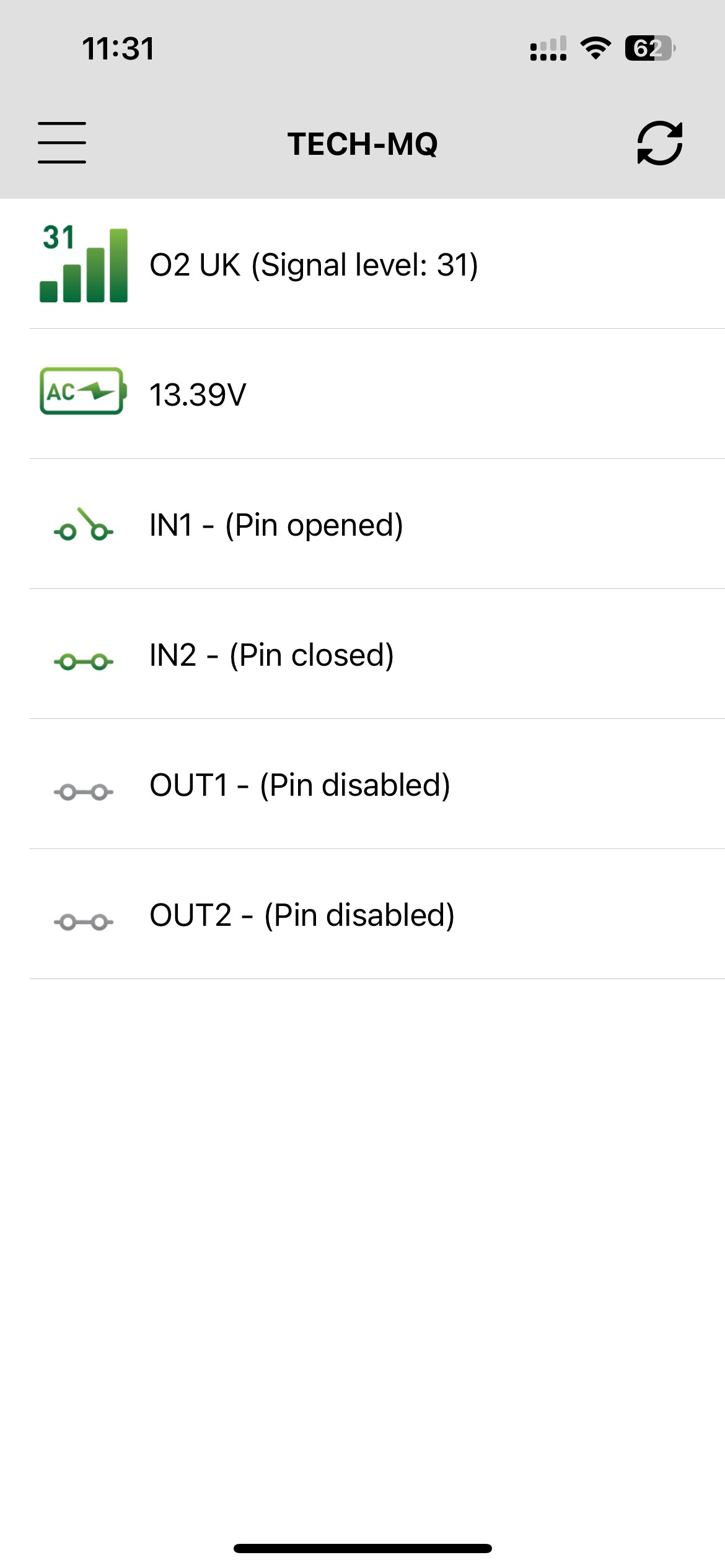

The app will detail and highlight the current status of the device (Signal, power levels, input/output status etc.).

To login to the app, use the credentials provided on the *Quick Installation Manual inside the box.


*If the login credentials cannot be found on the provided Quick Installation Manual, please contact the Technical Support Team on 0115 714 9990.
